GC 342 * Laser scanner for the protection of automatic doors and windows with integrated object and wall blanking
- Compact and space-saving safety sensor
- Narrow detection area secures door leaf widths up to max. 1600 mm
- Integrated object and wall blanking near maximum door opening
- Protection area on the main closing edge is automatically expanded depending on the door angle
- Automatized teaching of the system with the push of a button
- Avoidance of hazards at pinching and shearing edges on automated windows
Application Areas
- Protection of automatic swing and revolving doors
- Interior and exterior doors
- Use on doors up to 1600 mm leaf width
- Complicated flooring, such as reflective floors, entrance mats, metal rails
- Use on doors with continuous vertical pull handle
- Protection of the main and secondary closing edges on automated windows
Installation situations in reference objects and videos
Slimdrive EMD with GC 342 laser scanner and TZ 320 door control unit

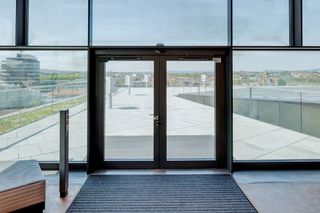

The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH
GEZE Slimdrive EMD IS with GC 342 laser scanner
The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH

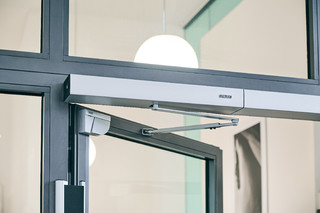

GEZE Powerturn F/R with GC 342 laser scanner
The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH

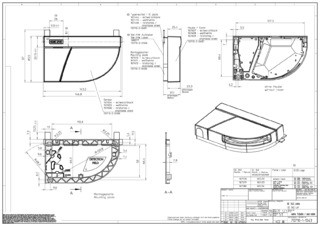

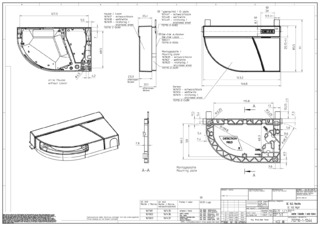

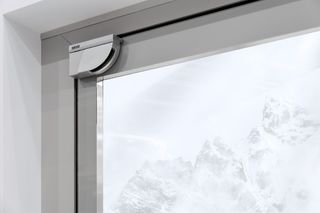

GC 342 Laser scanner
Absolute reliability and safety and a clear, modern design line. © GEZE GmbH
GEZE Powerturn F/R with GC3 42 laser scanner
The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH
Technical data
| GC 342 | |
| Dimensions | 143 x 86 x 40 mm |
| Technology | Laser scanner, time-of-flight measurement |
| Number of active infrared detectors | 1 |
| Operating voltage | 12-24 V DC ± 15% |
| Output | 2 potential-free relay contacts |
| IP rating | IP54 |
| Connector cable length | 2500 mm |
| Installation height (min.) | 1500 mm |
| Installation height (max.) | 3870 mm |
| Reaction time | Door leaf safety: < 50 ms / pinch zone safety: < 90 ms |
| Service temperature | -30 - 60 °C |
| Humidity | 0-95 % relative, non-condensing |
| Standard conformity | DIN 18650, EN 16005 |
