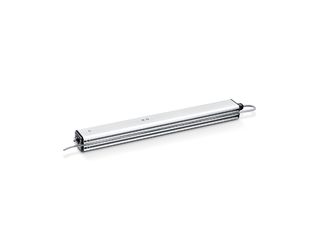

E 350 N * Spindle drive in 230 V version with extensive bracket programme
- Compact design
- Versatile thanks to extensive bracket programme
- Robust design with mechanical load cut-off and IP rating IP65
Application Areas
- Direct opener for natural ventilation (230 V) in the façade and roof area
- Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
- Installation on wooden, PVC or metal windows

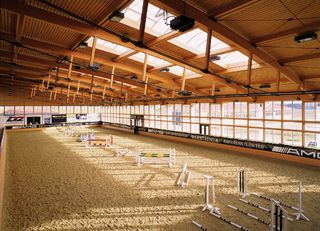

Installation situations in reference objects and videos

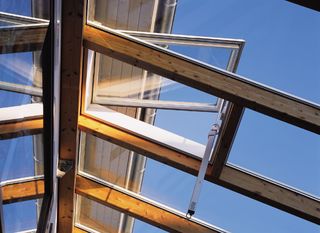

E 350 N electric spindle drive
E 350 N can be put to universal use thanks to its extensive range of consolesInward opening and outward opening windows with bottom-hung, top-hung and side-hung leaves.Particularly suitable for slats and roof windows. Installation on wooden, plastic or metal windows. © Martin Jakob / GEZE GmbH

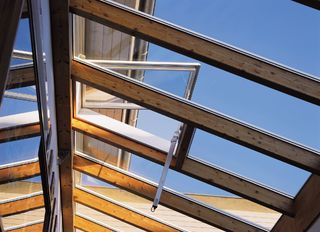

E 350 N electric spindle drive
E 350 N can be put to universal use thanks to its extensive range of consolesInward opening and outward opening windows with bottom-hung, top-hung and side-hung leaves.Particularly suitable for slats and roof windows. Installation on wooden, plastic or metal windows. © Martin Jakob / GEZE GmbH
E 350 N electric spindle drive
E 350 N can be put to universal use thanks to its extensive range of consolesInward opening and outward opening windows with bottom-hung, top-hung and side-hung leaves.Particularly suitable for slats and roof windows. Installation on wooden, plastic or metal windows. © Martin Jakob / GEZE GmbH
E 350 N electric spindle drive
E 350 N can be put to universal use thanks to its extensive range of consolesInward opening and outward opening windows with bottom-hung, top-hung and side-hung leaves.Particularly suitable for slats and roof windows. Installation on wooden, plastic or metal windows. © Martin Jakob / GEZE GmbH
Technical data
| E 350 N | |
| Dimensions | 40 x 47 mm |
| Opening speed ventilation | 5 mm/s |
| Force of pressure (max.) | 750 N |
| Holding force (max.) | 2000 N |
| Compressive force | 750 N |
| Voltage at operation | 230 V ± 10 % |
| Operating voltage | 230 V |
| Current consumption | 0.15 A |
| Power consumption | 35 W |
| Duty rating | 50 % |
| Connector cable length | 2.5 m |
| Min. core cross section | 0.75 mm² |
| Number of cores | 3 cores |
| Service temperature | -20 - 70 °C |
| IP rating | IP65 |
| protection rating | II |
| Type of stroke shortening | Factory setting |
| End position cut-off extended | mechanical overload cut-off |
| End position cut-off retracted | mechanical overload cut-off |
| Overload cut-off | Yes |
| Bottom-hung window INWARD-opening frame installation | Yes |
| Bottom-hung window INWARD-opening leaf installation | Yes |
| Bottom-hung window OUTWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening door leaf installation | Yes |
| Side-hung window OUTWARD-opening frame installation | Yes |
| Top-hung window INWARD-opening frame installation | Yes |
| Top-hung window INWARD-opening leaf installation | Yes |
| Top-hung window OUTWARD-opening frame installation | Yes |
| OUTWARD-opening roof window | Yes |
Downloads
LABELLING OBLIGATION: © Martin Jakob / GEZE GmbH
LABELLING OBLIGATION: © Martin Jakob / GEZE GmbH
LABELLING OBLIGATION: © Martin Jakob / GEZE GmbH
LABELLING OBLIGATION: © Martin Jakob / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
